Radii combines material expression with technical integrity, elevating the resident experience at The Eades Walthamstow.

Part of the regeneration of Walthamstow town centre, The Eades Walthamstow redevelopment forms a "striking new residential addition to this mixed-use site". Set above the existing retail complex, the scheme introduces contemporary living spaces while enhancing public areas and connections through the heart of the development.

Designed by KKA Architecture and delivered by du Boulay Projects Ltd, the project combines high-quality materials and elegant design detailing to create a cohesive architectural language across residential, entrance, and public areas.

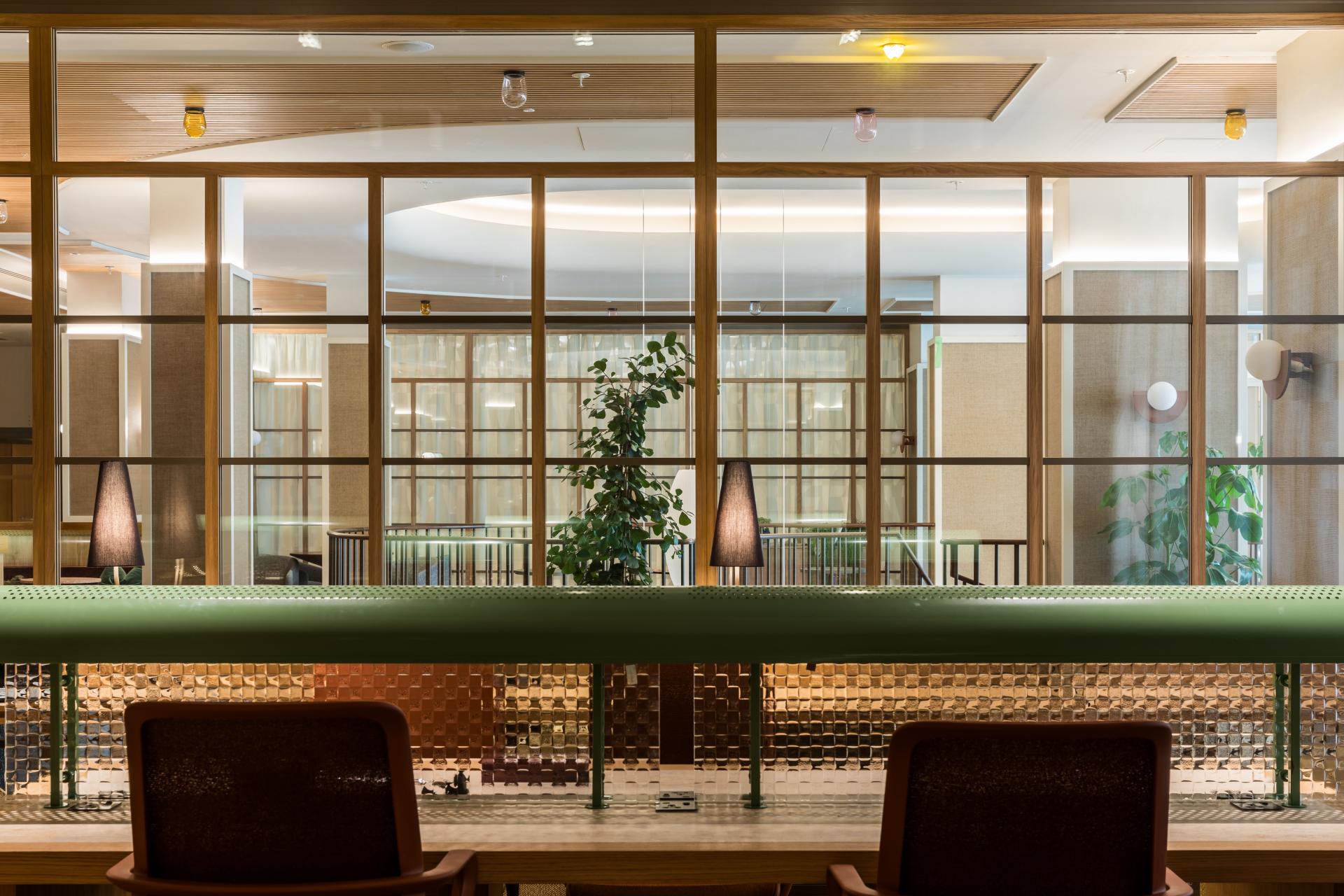

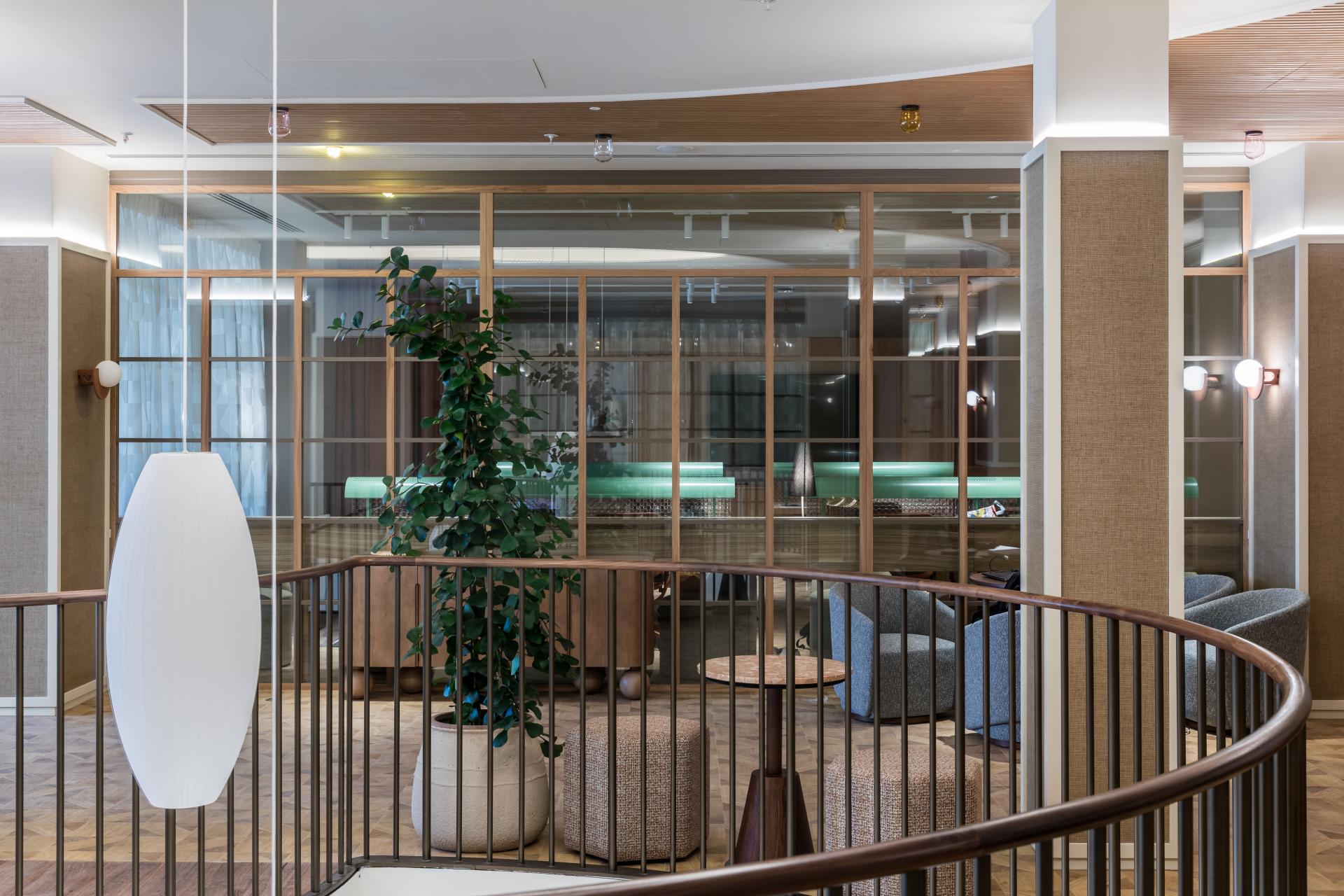

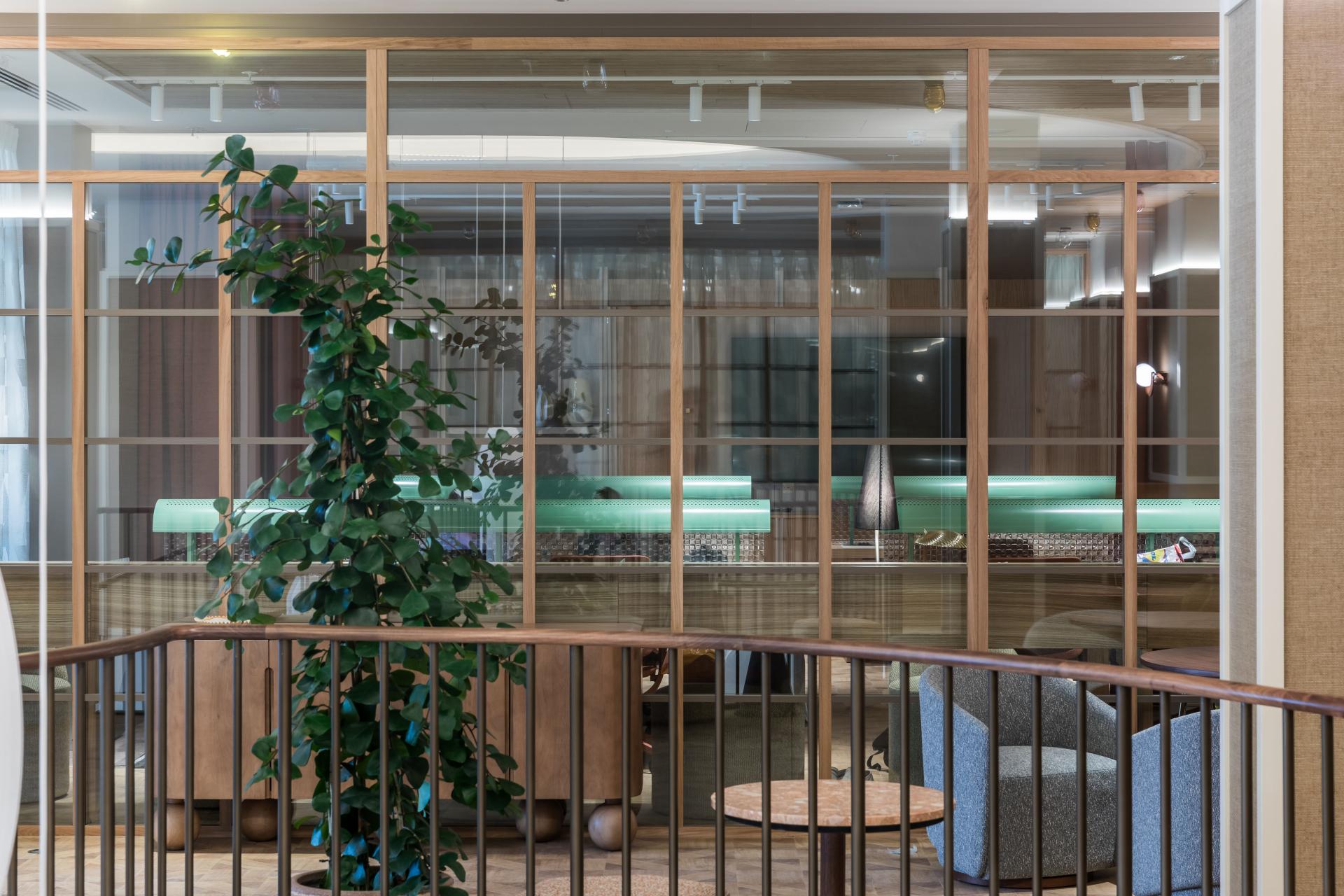

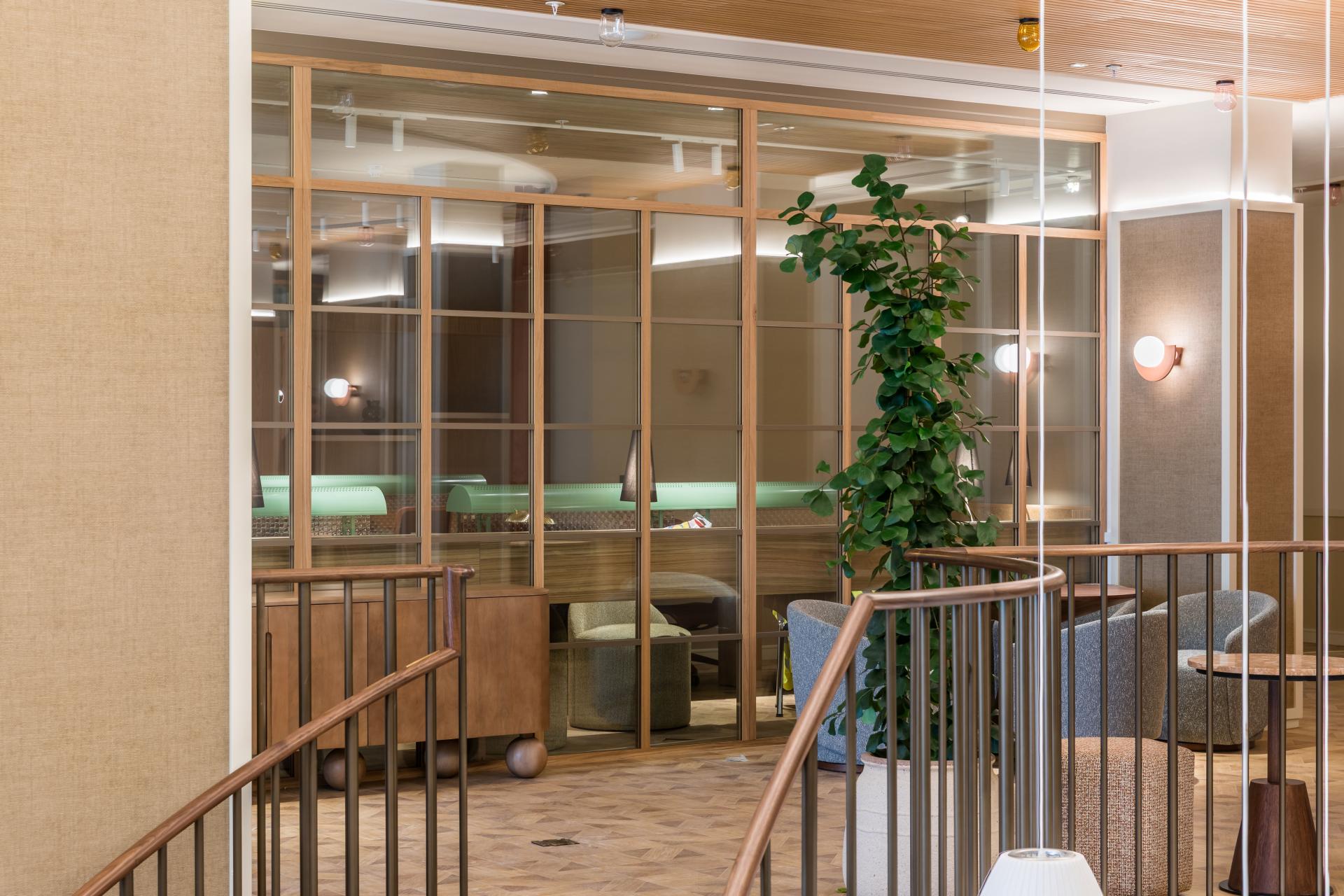

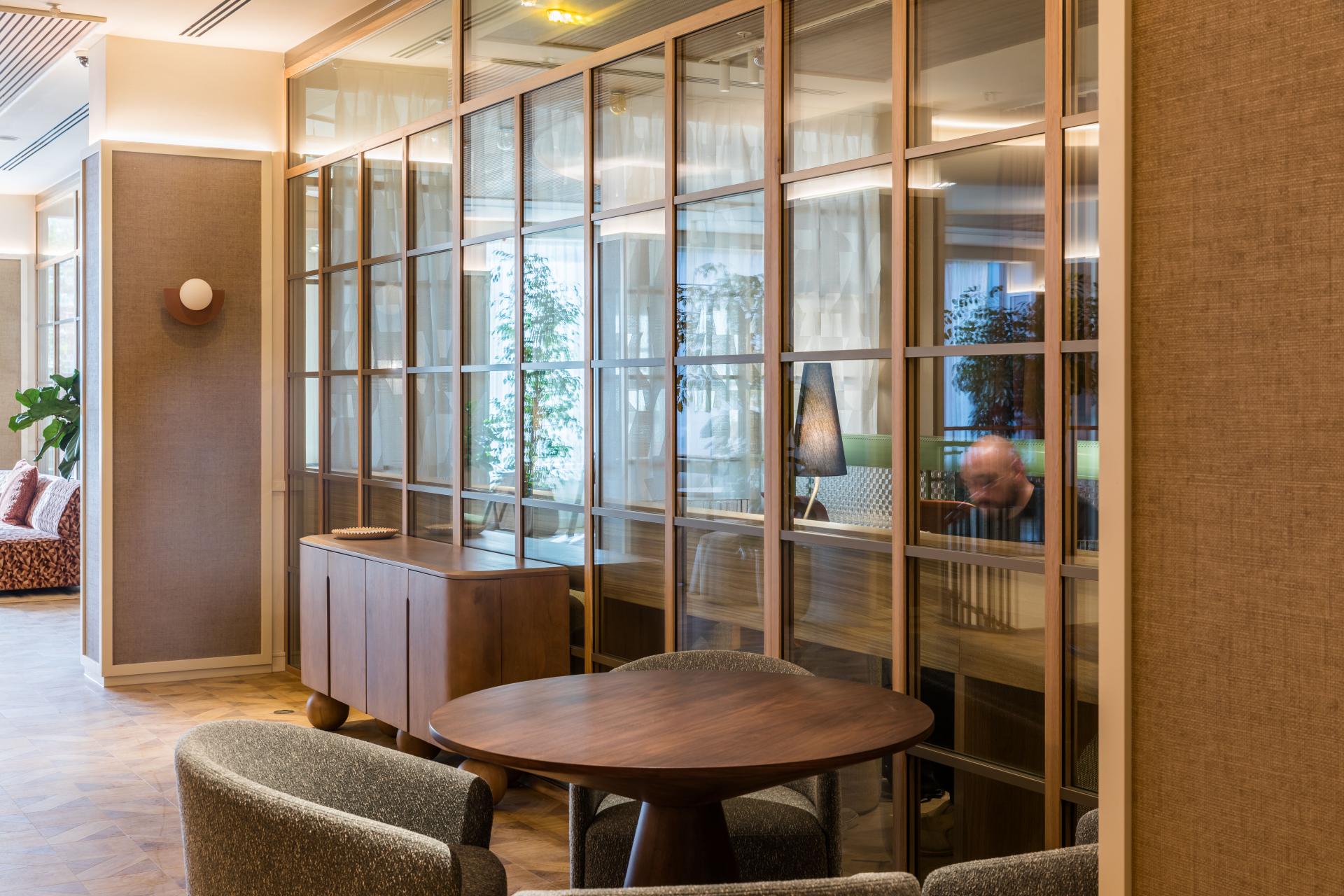

At the heart of the specification were Radii's Dovetail P64 ‘Plus’ double glazed timber-framed partitions, installed throughout Level 1 common areas.

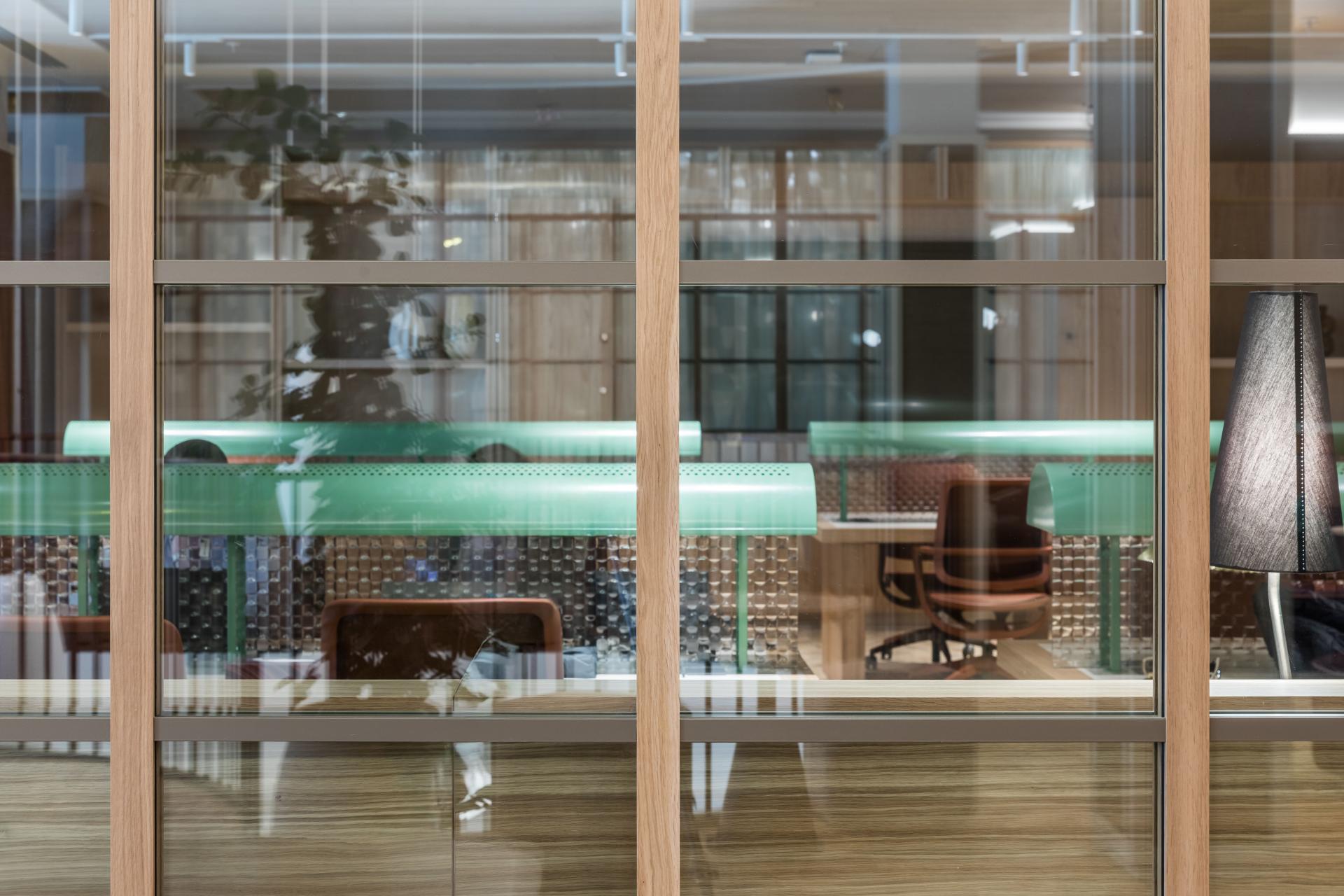

Building upon Radii's standard Dovetail system, the ‘Plus’ configuration introduces timber mullions and transoms, providing added architectural structure and definition while maintaining the natural warmth of timber.

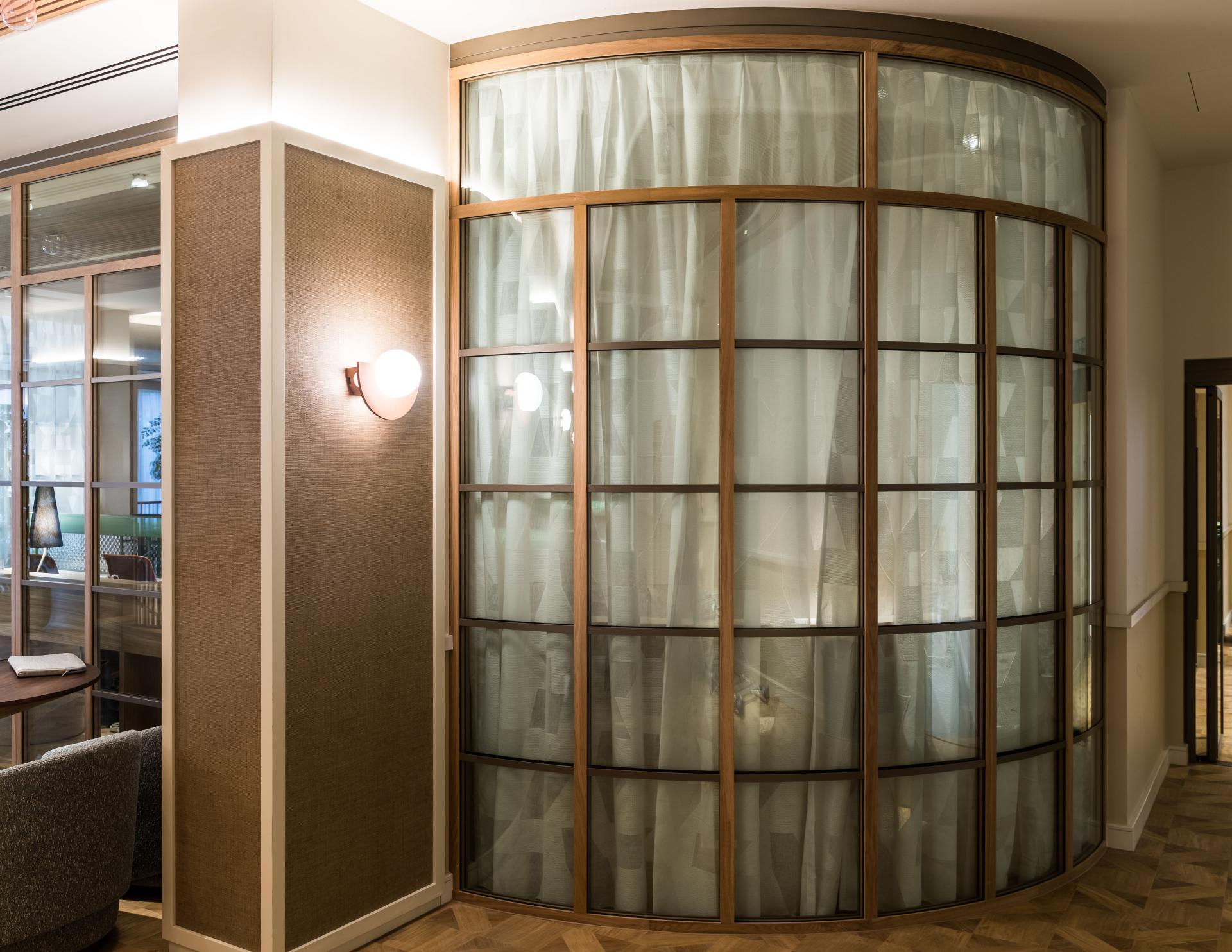

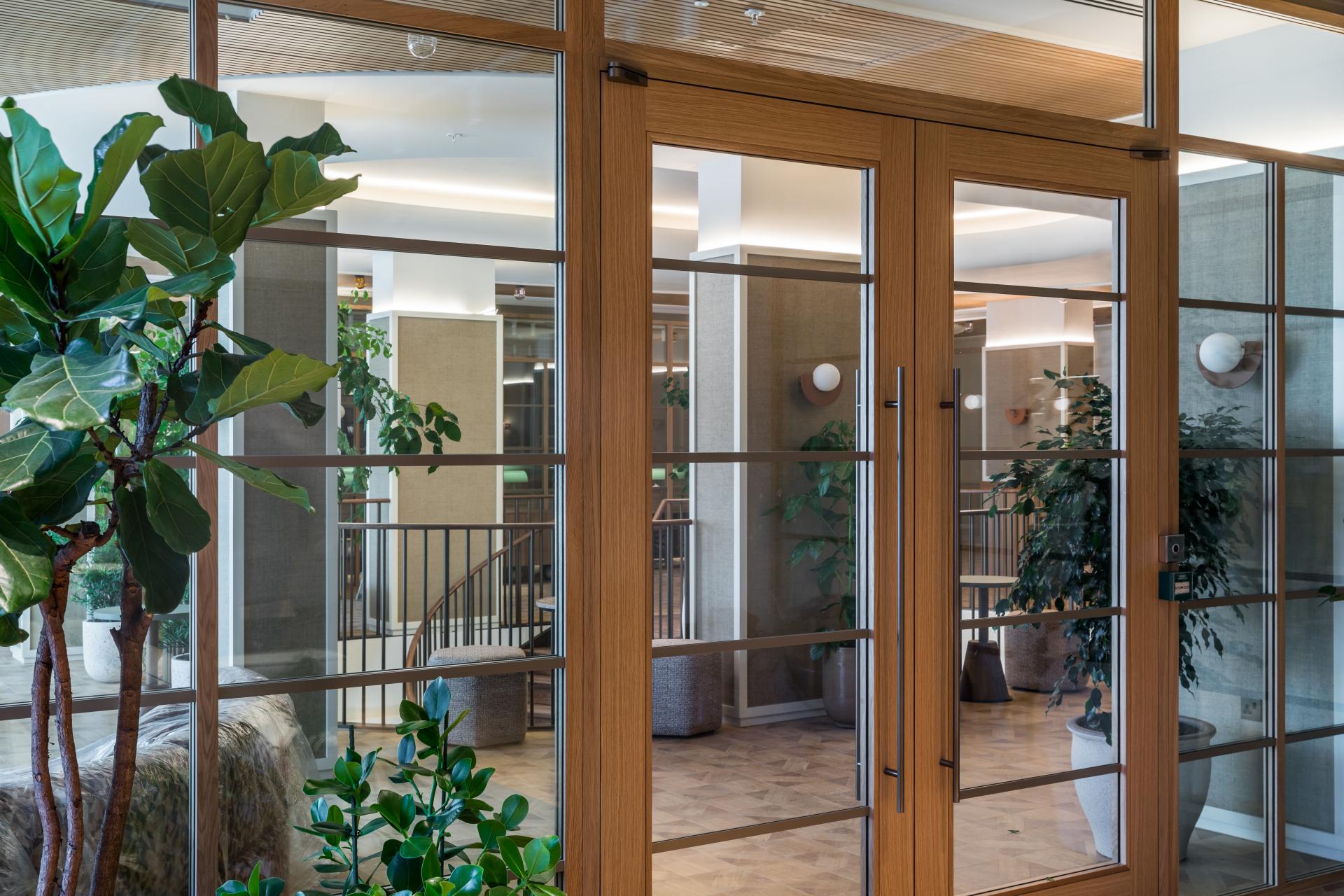

The system was installed across wide expanses and curved sections, with solid core timber vision panel doors in both single and double leaf configurations to complement the design.

As part of Radii’s commitment to sustainable design, Environmental Product Declarations (EPDs) are available for Dovetail P64. The system’s responsibly sourced timber replaces traditional aluminium framework, combining refined aesthetics with a natural feel.

Dovetail Plus enhances this approach, creating a more defined architectural presence without compromising environmental credentials.

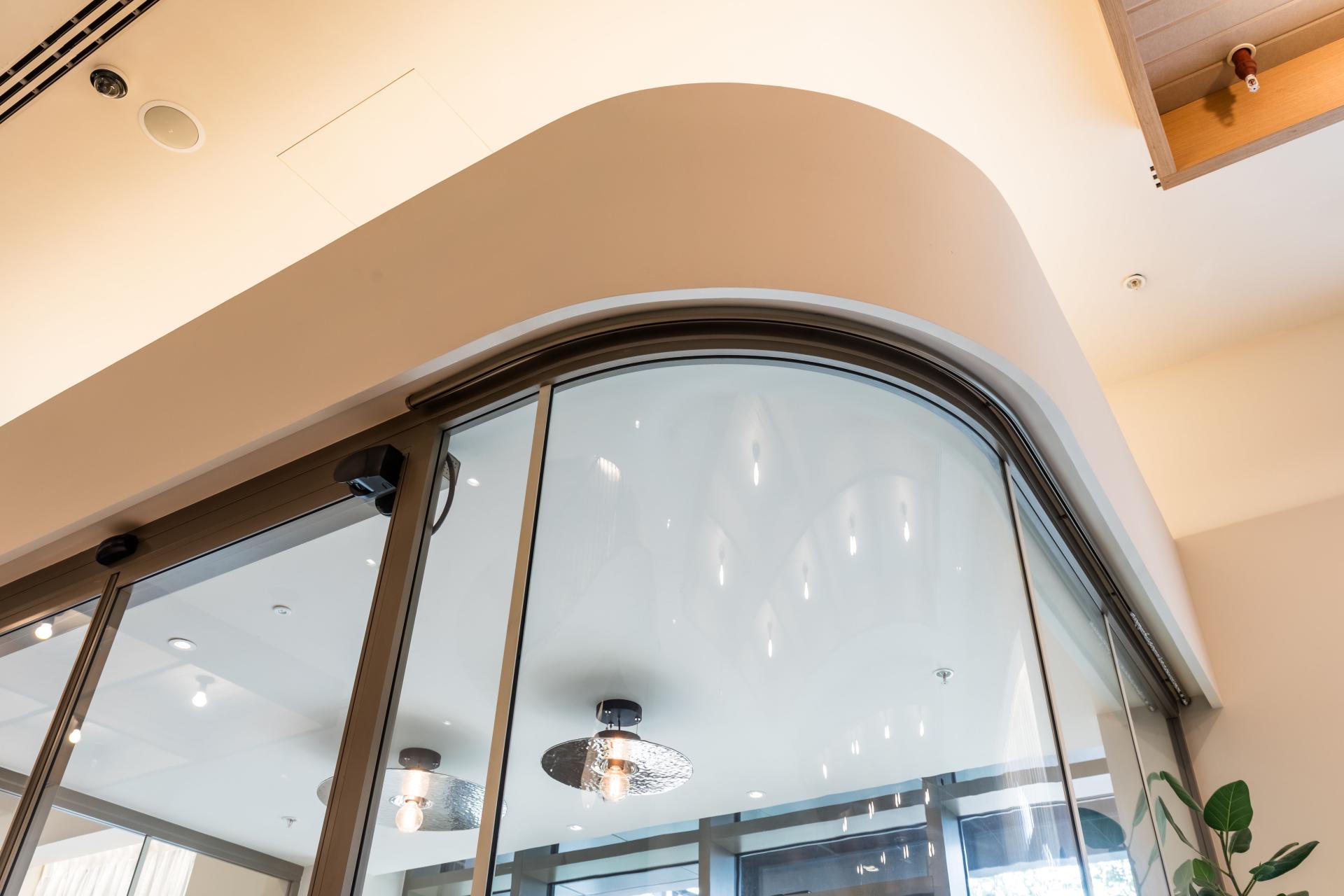

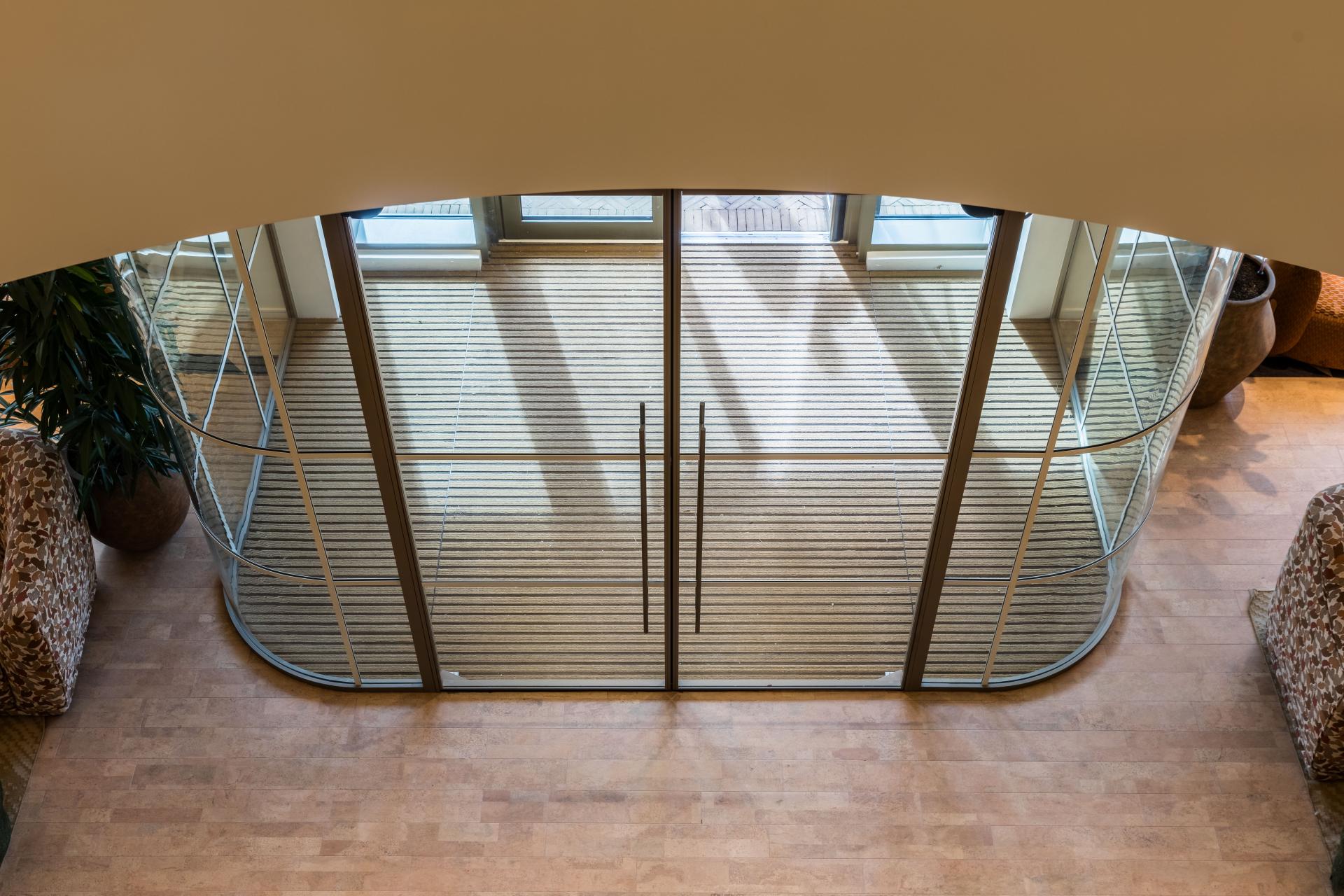

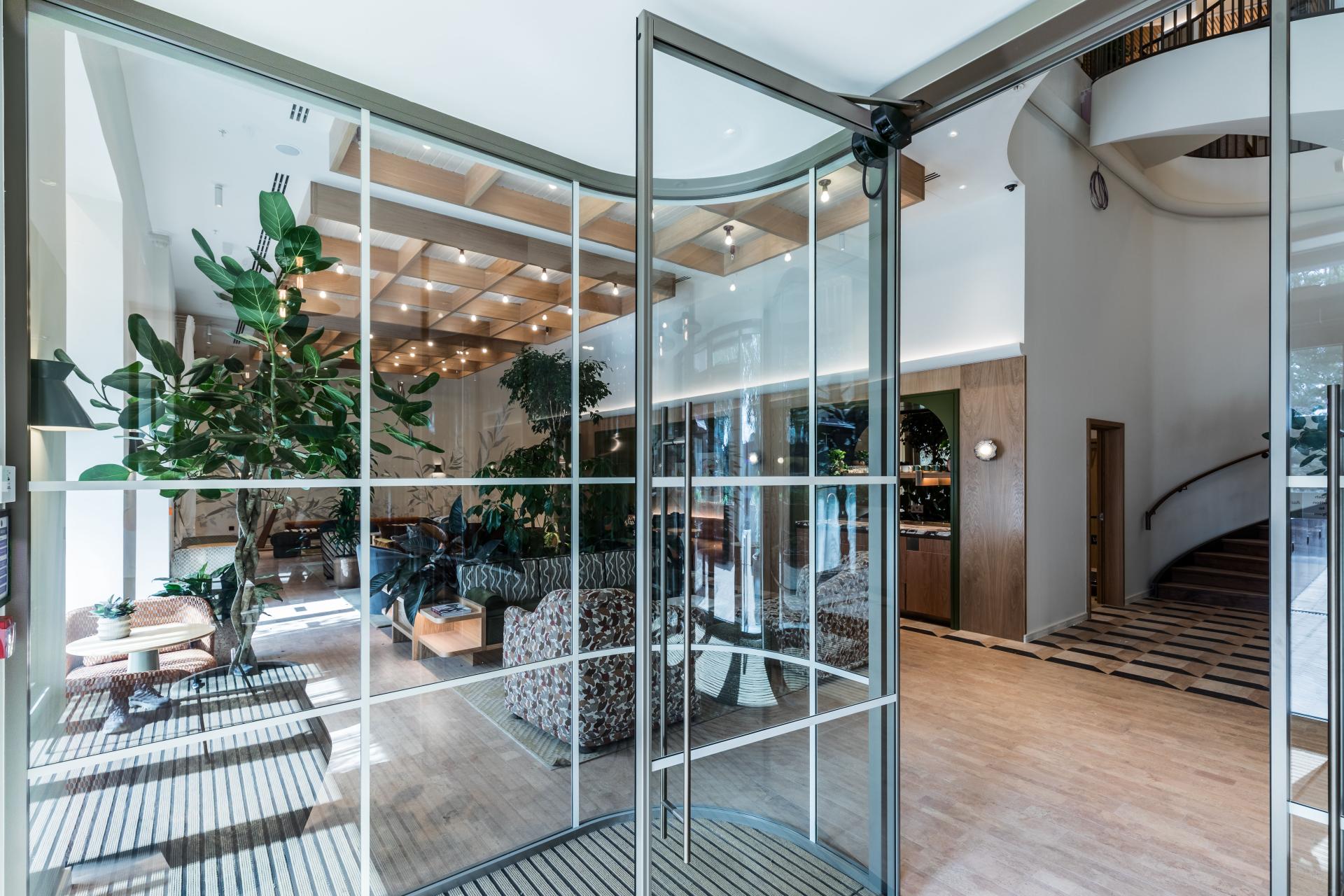

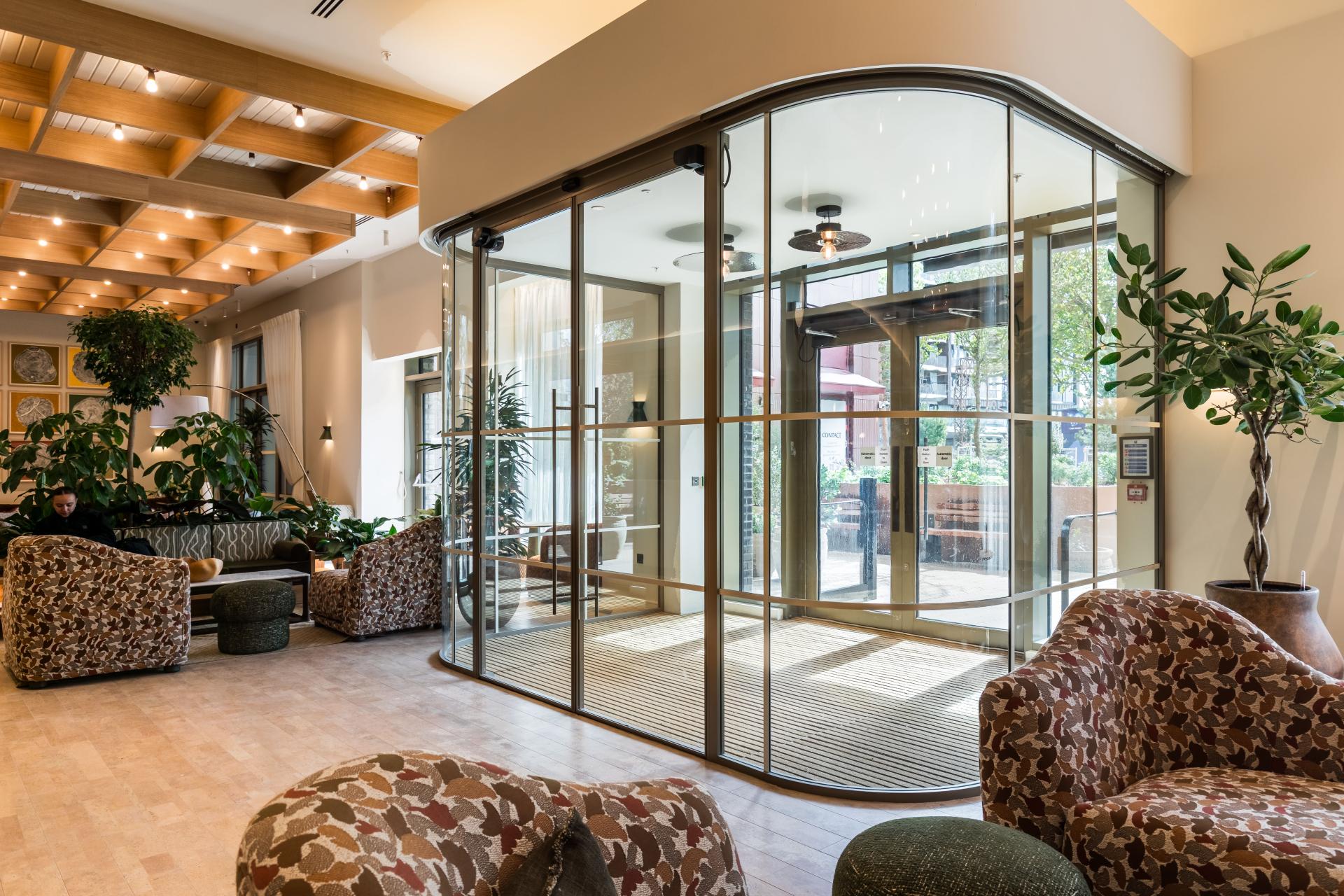

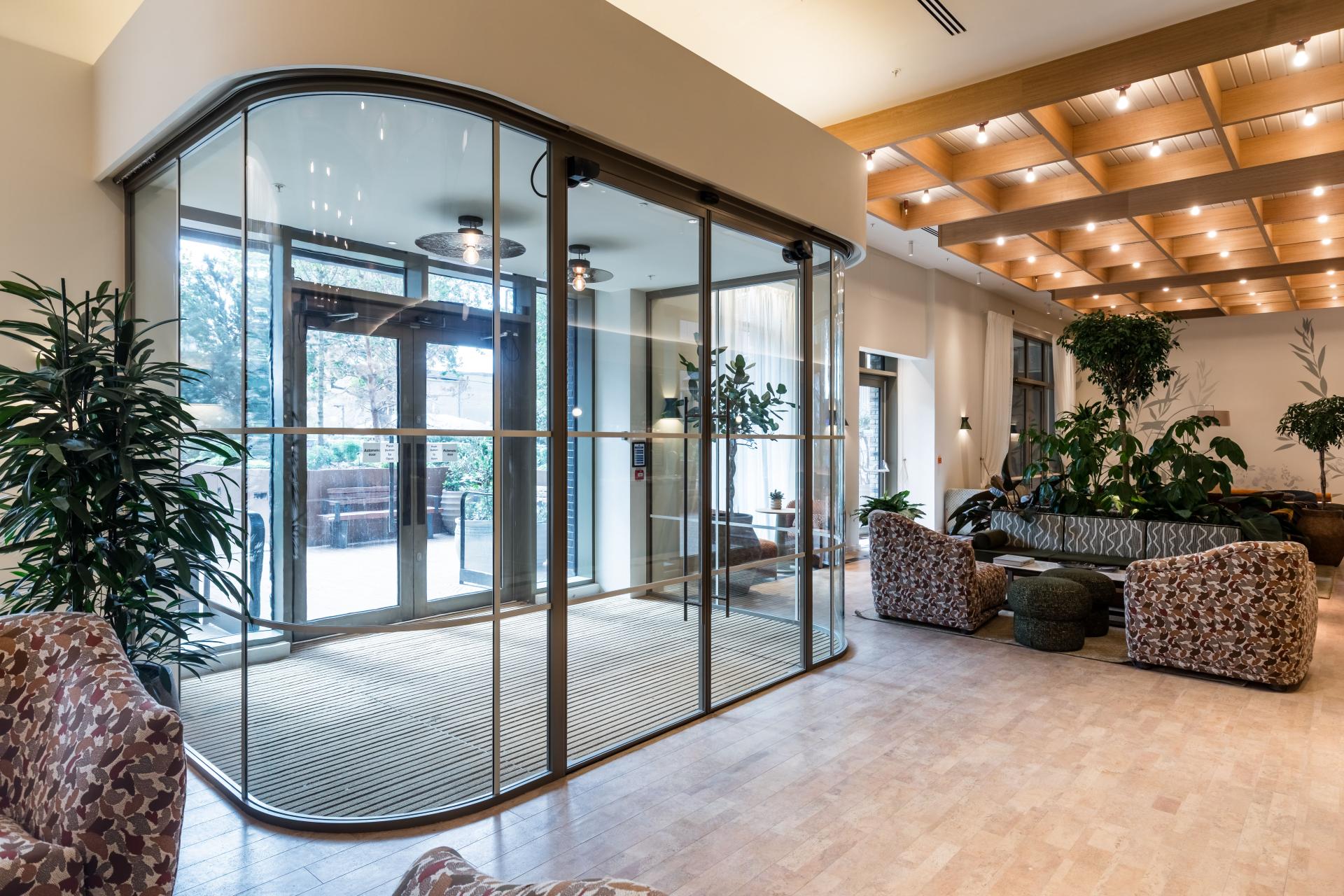

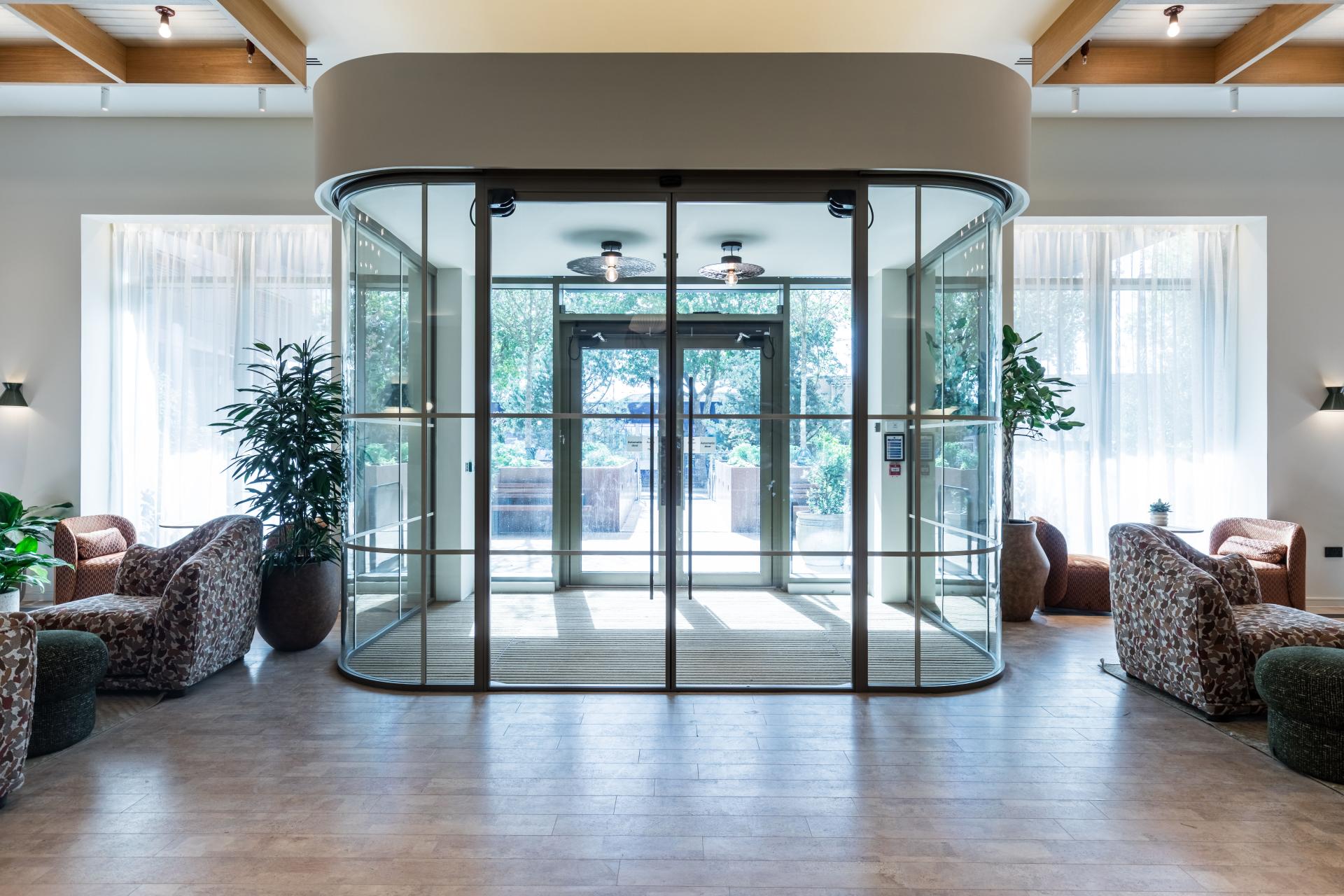

Across the entrance and common areas, Linear 50 aluminium framed single glazed partitions were installed to create clear visual connections and a refined architectural rhythm throughout the scheme. At Ground Level, the system formed elegant curved glazed sections with distinctive Rio feature banding, complemented by automatic Hogan single glazed double leaf door sets — achieving seamless accessibility and a cohesive appearance through the matching 50mm aluminium profile.

On Level 1, leaf-and-a-half aluminium framed Hogan door sets were installed within corridor areas, maintaining consistency in both aesthetic and performance across the development.

Together, these installations showcase Radii’s precision in delivering high-quality aluminium framed glazed partitions and doors, ensuring material continuity, exact alignment, and enduring visual balance from the entrance through to upper levels.

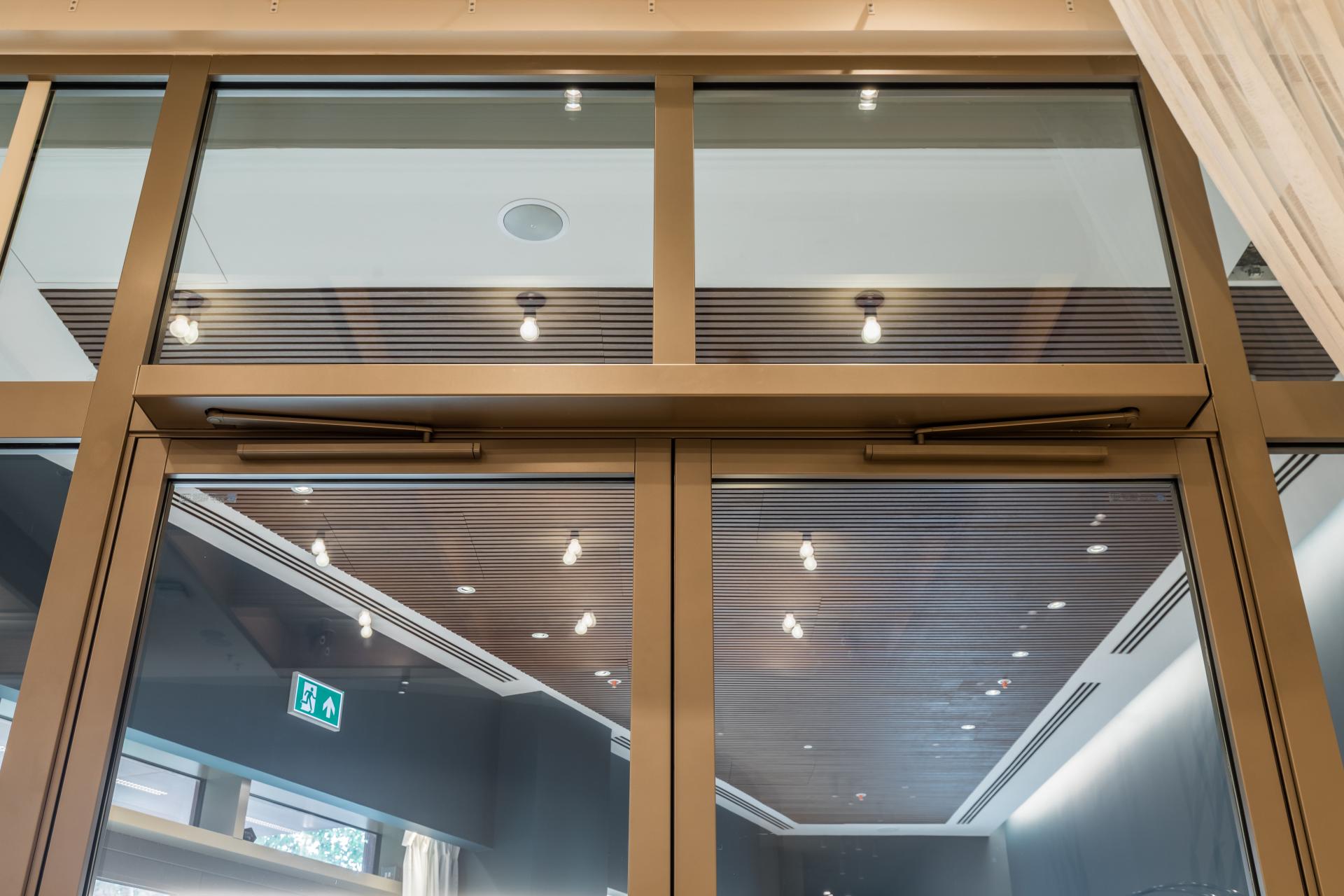

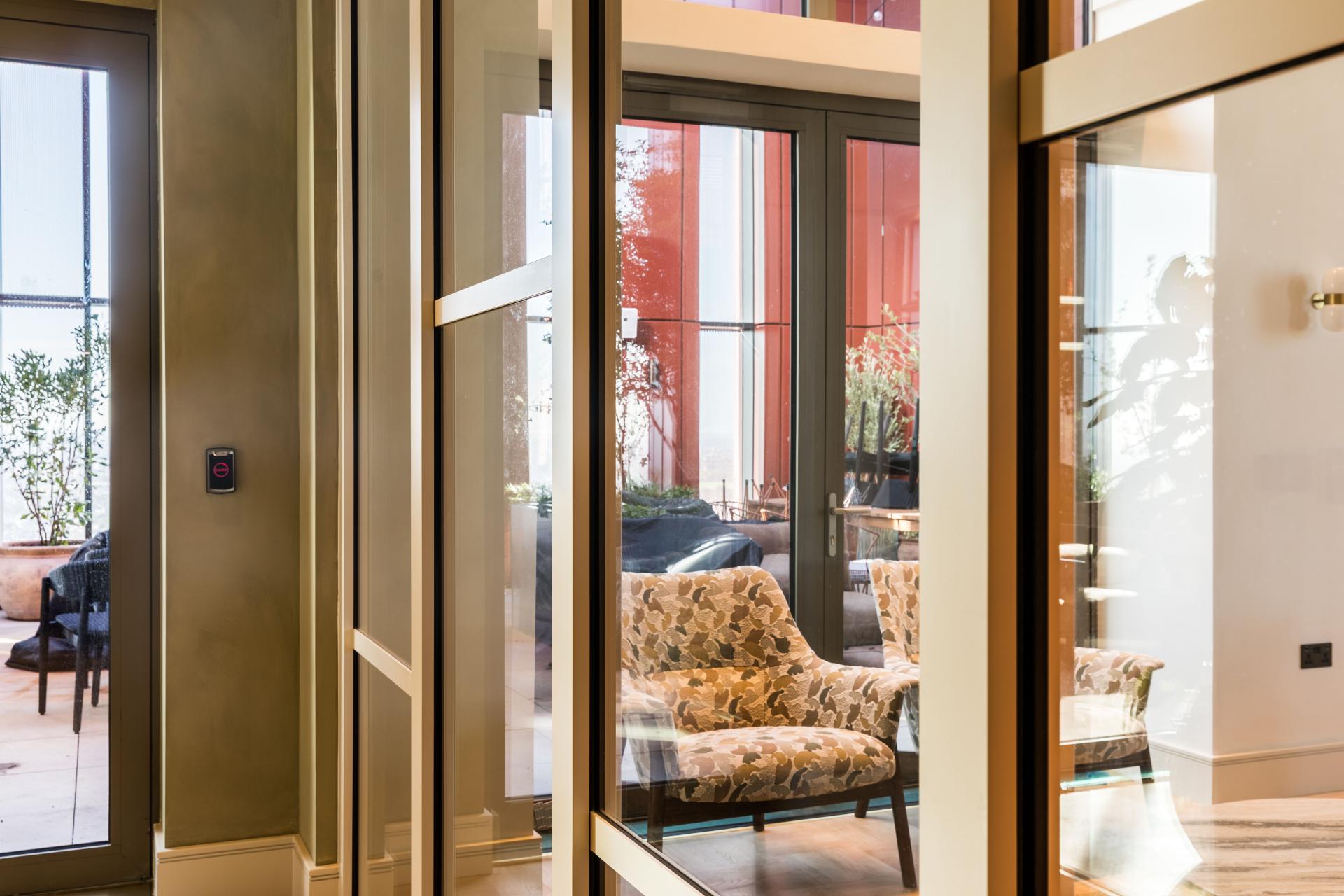

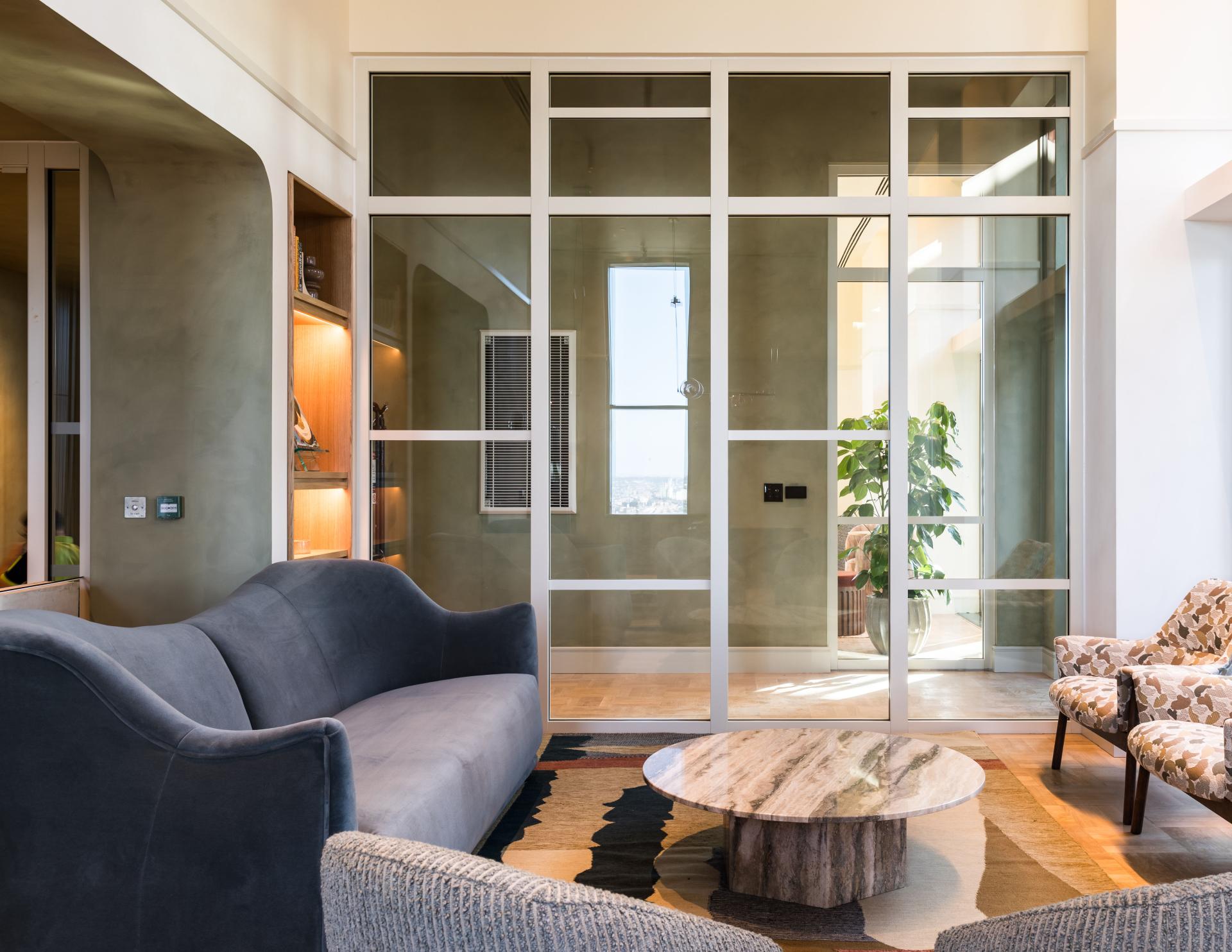

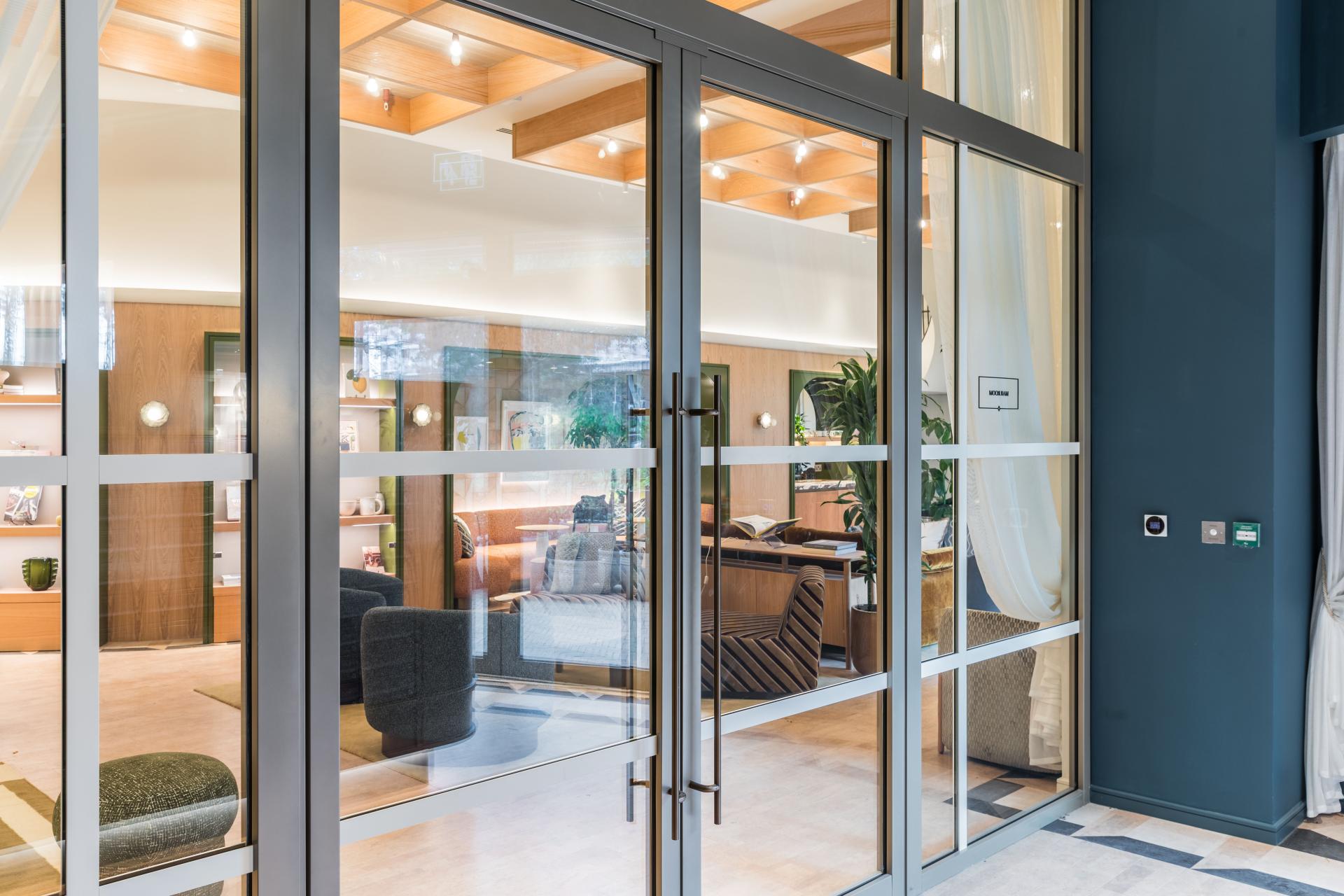

On the Ground Floor and Level 33, Radii installed FirePro glazed fire-rated screens and doors, providing certified fire protection while maintaining seamless visual continuity throughout the space.

The specification included EI60 rated double doors with EI120 rated overpanels and side screens — all achieved without the need for separation posts, thanks to FirePro’s robust, fully tested configuration.

Further installations incorporated single and double leaf doors, some with automatic closers, as well as mullion and transom arrangements reaching heights of up to 3400mm. FirePro delivers exceptional fire performance and design consistency across varying rating requirements, with fully certified transitions between EI60 and EI120 zones.

Radii’s delivery for The Eades Walthamstow exemplifies the Radii team's fire-rated and certified glazing expertise, combining advanced product development with material specialisation across timber, aluminium, and steel.

Each element — from the precisely engineered curved glazing to the bespoke fire-rated configurations — reflects a commitment to design integrity, technical performance, and exacting installation standards.

This project highlights how Radii’s integrated approach transforms complex architectural concepts into refined, buildable realities.
